pC0043-PspCas13b crRNA backbone

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pC0043-PspCas13b crRNA backbone
出品公司: 爱迪基因
目录编号: 103854
存储实验室: Feng Zhang

载体骨架基本信息
载体名称: pUC19
载体出品公司: --
载体抗性: 氨苄青霉素
空载体大小: 2686 bp
完整质粒大小: 2962 bp
载体修饰: --
载体类型: 哺乳细胞表达,CRISPR
筛选标记: --
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: U6-PspCas13b DR-BbsI-BbsI-polyT
物种来源: --
插入大小: 314 bp
基因突变: --
GenBank编号 --
启动子 --
标签/融合蛋白: --
克隆方法: --
5' 克隆位点: --
3' 克隆位点: --
5' 测序引物 --
3' 测序引物 --

文献引用方法
材料和方法部分: pC0043-PspCas13b crRNA backbone was a gift from Feng Zhang (Addgene plasmid # 103854 ; http://n2t.net/addgene:103854 ; RRID:Addgene_103854)
参考文献部分: RNA editing with CRISPR-Cas13. Cox DBT, Gootenberg JS, Abudayyeh OO, Franklin B, Kellner MJ, Joung J, Zhang F. Science. 2017 Oct 25. pii: eaaq0180. doi: 10.1126/science.aaq0180. 10.1126/science.aaq0180 PubMed 29070703

载体图谱质粒图谱和多克隆位点信息

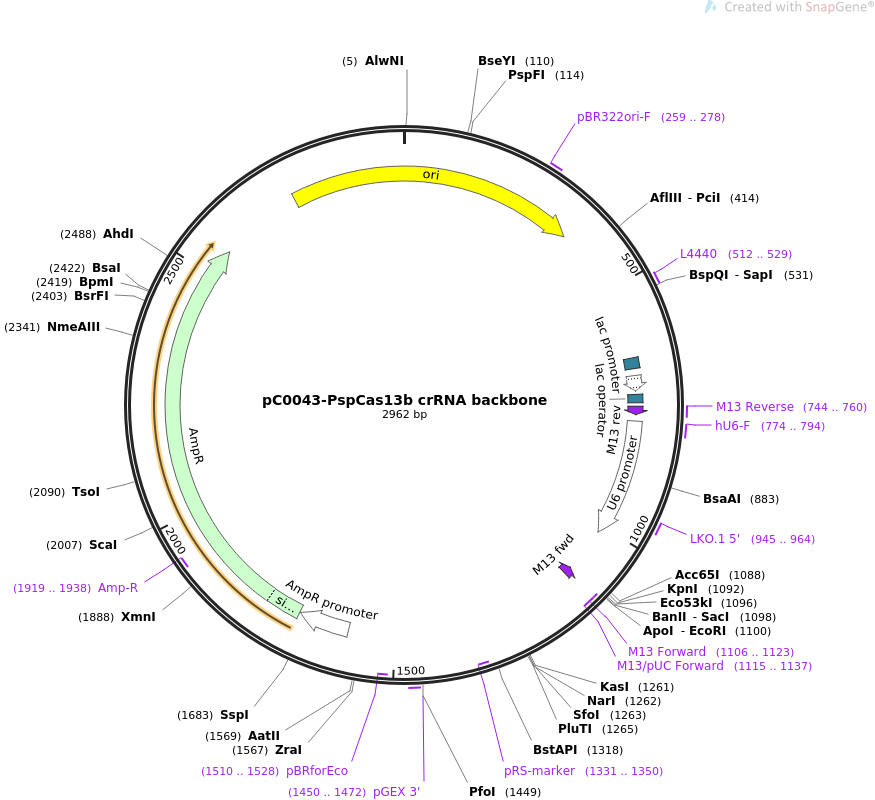

pC0043-PspCas13b crRNA backbone质粒图

载体简介

载体序列

LOCUS       pC0043-PspCas13b crRNA backbone                2962 bp ds-DNA     circular SYN 21-AUG-2019
DEFINITION  For cloning of guide RNAs compatible with PspCas13b. Contains a 3'
            direct repeat. Clone using BbsI (BpiI). F overhang cacc. R overhang
            caac.
ACCESSION   .
VERSION     .
KEYWORDS    pC0043-PspCas13b crRNA backbone
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 2962)
  AUTHORS   Cox DBT, Gootenberg JS, Abudayyeh OO, Franklin B, Kellner MJ, Joung
            J, Zhang F
  TITLE     RNA editing with CRISPR-Cas13.
  JOURNAL   Science. 2017 Oct 25. pii: eaaq0180. doi: 10.1126/science.aaq0180.
  PUBMED    29070703
REFERENCE   2  (bases 1 to 2962)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 21, 2019 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..2962
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     259..278
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     primer_bind     512..529
                     /label=L4440
                     /note="L4440 vector, forward primer"
     protein_bind    646..667
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     promoter        682..712
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    720..736
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     primer_bind     744..760
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     744..760
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     promoter        774..1014
                     /label=U6 promoter
                     /note="RNA polymerase III promoter for human U6 snRNA"
     primer_bind     774..794
                     /label=hU6-F
                     /note="Human U6 promoter, forward primer"
     primer_bind     945..964
                     /label=LKO.1 5'
                     /note="Human U6 promoter, forward primer"
     primer_bind     complement(1106..1123)
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     complement(1106..1122)
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(1115..1137)
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     primer_bind     complement(1331..1350)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     1450..1472
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     complement(1510..1528)
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     promoter        1596..1700
                     /gene="bla"
                     /label=AmpR promoter
     CDS             1701..2561
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(1919..1938)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     rep_origin      2732..358
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 agtggctgct gccagtggcg ataagtcgtg tcttaccggg ttggactcaa gacgatagtt
       61 accggataag gcgcagcggt cgggctgaac ggggggttcg tgcacacagc ccagcttgga
      121 gcgaacgacc tacaccgaac tgagatacct acagcgtgag ctatgagaaa gcgccacgct
      181 tcccgaaggg agaaaggcgg acaggtatcc ggtaagcggc agggtcggaa caggagagcg
      241 cacgagggag cttccagggg gaaacgcctg gtatctttat agtcctgtcg ggtttcgcca
      301 cctctgactt gagcgtcgat ttttgtgatg ctcgtcaggg gggcggagcc tatggaaaaa
      361 cgccagcaac gcggcctttt tacggttcct ggccttttgc tggccttttg ctcacatgtt
      421 ctttcctgcg ttatcccctg attctgtgga taaccgtatt accgcctttg agtgagctga
      481 taccgctcgc cgcagccgaa cgaccgagcg cagcgagtca gtgagcgagg aagcggaaga
      541 gcgcccaata cgcaaaccgc ctctccccgc gcgttggccg attcattaat gcagctggca
      601 cgacaggttt cccgactgga aagcgggcag tgagcgcaac gcaattaatg tgagttagct
      661 cactcattag gcaccccagg ctttacactt tatgcttccg gctcgtatgt tgtgtggaat
      721 tgtgagcgga taacaatttc acgcaggaaa cagctatgac catgattacg ccagagggcc
      781 tatttcccat gattccttca tatttgcata tacgatacaa ggctgttaga gagataattg
      841 gaattaattt gactgtaaac acaaagatat tagtacaaaa tacgtgacgt agaaagtaat
      901 aatttcttgg gtagtttgca gttttaaaat tatgttttaa aatggactat catatgctta
      961 ccgtaacttg aaagtatttc gatttcttgg ctttatatat cttgtggaaa ggacgaaaca
     1021 ccatgtcttc ctgggacgaa gacaagttgt ggaaggtcca gttttgaggg gctattacaa
     1081 cttttttggt accgagctcg aattcactgg ccgtcgtttt acaacgtcgt gactgggaaa
     1141 accctggcgt tacccaactt aatcgccttg cagcacatcc ccctttcgcc agctggcgta
     1201 atagcgaaga ggcccgcacc gatcgccctt cccaacagtt gcgcagcctg aatggcgaat
     1261 ggcgcctgat gcggtatttt ctccttacgc atctgtgcgg tatttcacac cgcatatggt
     1321 gcactctcag tacaatctgc tctgatgccg catagttaag ccagccccga cacccgccaa
     1381 cacccgctga cgcgccctga cgggcttgtc tgctcccggc atccgcttac agacaagctg
     1441 tgaccgtctc cgggagctgc atgtgtcaga ggttttcacc gtcatcaccg aaacgcgcga
     1501 gacgaaaggg cctcgtgata cgcctatttt tataggttaa tgtcatgata ataatggttt
     1561 cttagacgtc aggtggcact tttcggggaa atgtgcgcgg aacccctatt tgtttatttt
     1621 tctaaataca ttcaaatatg tatccgctca tgagacaata accctgataa atgcttcaat
     1681 aatattgaaa aaggaagagt atgagtattc aacatttccg tgtcgccctt attccctttt
     1741 ttgcggcatt ttgccttcct gtttttgctc acccagaaac gctggtgaaa gtaaaagatg
     1801 ctgaagatca gttgggtgca cgagtgggtt acatcgaact ggatctcaac agcggtaaga
     1861 tccttgagag ttttcgcccc gaagaacgtt ttccaatgat gagcactttt aaagttctgc
     1921 tatgtggcgc ggtattatcc cgtattgacg ccgggcaaga gcaactcggt cgccgcatac
     1981 actattctca gaatgacttg gttgagtact caccagtcac agaaaagcat cttacggatg
     2041 gcatgacagt aagagaatta tgcagtgctg ccataaccat gagtgataac actgcggcca
     2101 acttacttct gacaacgatc ggaggaccga aggagctaac cgcttttttg cacaacatgg
     2161 gggatcatgt aactcgcctt gatcgttggg aaccggagct gaatgaagcc ataccaaacg
     2221 acgagcgtga caccacgatg cctgtagcaa tggcaacaac gttgcgcaaa ctattaactg
     2281 gcgaactact tactctagct tcccggcaac aattaataga ctggatggag gcggataaag
     2341 ttgcaggacc acttctgcgc tcggcccttc cggctggctg gtttattgct gataaatctg
     2401 gagccggtga gcgtgggtct cgcggtatca ttgcagcact ggggccagat ggtaagccct
     2461 cccgtatcgt agttatctac acgacgggga gtcaggcaac tatggatgaa cgaaatagac
     2521 agatcgctga gataggtgcc tcactgatta agcattggta actgtcagac caagtttact
     2581 catatatact ttagattgat ttaaaacttc atttttaatt taaaaggatc taggtgaaga
     2641 tcctttttga taatctcatg accaaaatcc cttaacgtga gttttcgttc cactgagcgt
     2701 cagaccccgt agaaaagatc aaaggatctt cttgagatcc tttttttctg cgcgtaatct
     2761 gctgcttgca aacaaaaaaa ccaccgctac cagcggtggt ttgtttgccg gatcaagagc
     2821 taccaactct ttttccgaag gtaactggct tcagcagagc gcagatacca aatactgttc
     2881 ttctagtgta gccgtagtta ggccaccact tcaagaactc tgtagcaccg cctacatacc
     2941 tcgctctgct aatcctgtta cc
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例
